Fujitsu F56

Compact Multi Cassette Media Dispenser/Bunch Note Presenter

Fujitsu F56

High performance currency dispenser

The F56 offers many features usually found only on more expensive units. It can be configured to be serviced from the front or rear, making installation and integration a snap. With multiple delivery options like semi-bunch, presenter, bulk transports, and custom transports, deployers can customize and differentiate their cash delivery programs.

Fujitsu F56

High performance currency dispenser

The F56 offers many features usually found only on more expensive units. It can be configured to be serviced from the front or rear, making installation and integration a snap. With multiple delivery options like semi-bunch, presenter, bulk transports, and custom transports, deployers can customize and differentiate their cash delivery programs.

Explore Fujitsu F56

Benefits
  • Compact multi-cassette media dispenser
  • Flexible, convenient, easy integration
  • On-board and remote diagnostic tools for quickly diagnosing and resolving issues
  • Low cost of ownership to improve the return on investment
  • Target applications include Self-Checkout, low-end ATMs, bill breakers, bill payments kiosk, teller assist, and media dispenser
  • Highest flexibility in delivery and transport options
High-End Features at Low Cost
The Fujitsu F56 provides you with maximum flexibility in product design. It can be installed in both a front-service or a rear-service configuration.
  • RS232C
  • Bunch presenter
  • Bill low sensor
  • Denomination sensor
  • Predictive failure analysis
  • Lockable cassette option
  • Firmware downloadable
  • Rejected note tray
  • Front, rear, or dual-sided configurations

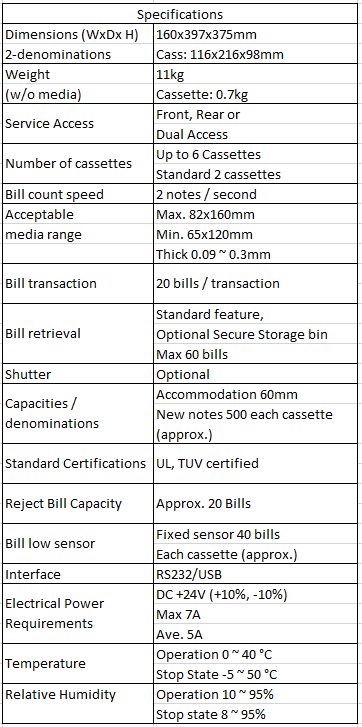

Specifications

Dimensions (W x D x H)160mm x 397mm x 375mm
Dimensions 2-Denominations
(W x D x H)

Cassette:

116mm x 216mm x 98mm

Weight11kg
Weight (w/o media)Cassette: 0.7kg
Service AccessFront, Rear or Dual Access
Number of Cassettes2 standard, up to 6 optional
Bill count speed2 notes/second
Acceptable Media Range

Max. (mm) 82mm x 160mm

Mín. (mm) 65mm x 120mm

Thickness (mm)0.09 ~ 0.3
Bill transaction20 bills/transaction
Bill RetrievalStandard feature,
Optional Secure Storage bin
Max 60 bills
ShutterOptional
Capacities / denominations

Accommodation 60mm

New notes

500 each cassette (approx.)

Standard CertificationsUL, TUV certified
Reject Bill CapacityApprox. 20 Bills
Bill low sensor

Fixed sensor 40 bills

Each cassette (approx.)

InterfaceRS232
Electrical Power Requirements

DC +24V (+10%, -10%)

Max 7A

Ave. 5A

Temperature

Operation: 0°C ~ 40°C

Stop State:-5°C ~ 50°C

Relative Humidity

Operation: 10% ~ 95%

Stop State: 8% ~  95%

Fujitsu F56 Datasheet

Data Sheet

Fujitsu F56

Drawing from more than 30 years of experience designing and building media dispensing devices with the quality and flexibility that OEMs require, Fujitsu engineered the F56 to offer high quality performance in a low-cost unit. Whether your applications include ATMs, self-checkout units, kiosks, bill payment, or bill changing, the F56 offers cost-efficient bill dispensing with high-end features.
