WT-A543 RFID Linen Tag

Fujitsu’s ultra-rugged, flexible UHF RFID Linen Tags

WT 543 Fujitsu Tag

Ultra-Rugged UHF RFID tags for commercial and industrial textile applications

Fujitsu’s latest industrial strength flexible UHF RFID tags have a smaller form factor for insertion into virtually any linen. Laundries will greatly improve linen and garment processing with near 100% accurate reading. Garment and linen owners will see improved asset tracking and reduced loss, while keeping their costs low by improving workflow and efficiency.

WT 543 Fujitsu Tag

Ultra-Rugged UHF RFID tags for commercial and industrial textile applications

Fujitsu’s latest industrial strength flexible UHF RFID tags have a smaller form factor for insertion into virtually any linen. Laundries will greatly improve linen and garment processing with near 100% accurate reading. Garment and linen owners will see improved asset tracking and reduced loss, while keeping their costs low by improving workflow and efficiency.

Explore Fujitsu's RFID Linen Tag

Benefits

  • UHF efficiency increases tag read performance to read hundreds of tags in a single pass
  • Can withstand high pressure extractors and flatworks irons used in high-throughput laundries
  • Inventory management can be performed accurately and easily by reading multiple tags with very low error rates
  • Installation of UHF technology will provide cost-effective garment management by reducing labor cost associated with barcode or high frequency RFID tags

Features

  • Small, soft, flexible material ideal for textiles, linens and garments
  • New smaller form factor for direct inseam attachment
  • New mechanical design for improved performance for flat linens
  • Exceptional durability for washing, drying, dry cleaning and ironing
  • Suitable for high-pressure extractors up to 60 bar
  • Suitable for Autoclave sterilization
  • UHF technology to read hundreds of tags simultaneously
  • 100% non-magnetic construction, suitable for hospital use
Specifications
Model Fujitsu RFID Tag WT-A543
Standard RFID Standard ISO/IEC 18000-63 (EPC Gen2)
Regulations RoHS Conforms to RoHS regulations
China RoHS Conforms to Administrative Measure on the Control of Pollution Caused by Electronic Information Products
MRI Safety Information MR Conditional (Static magnetic field of 1.5-T and 3-T)
Size & Weight 55 (W) x 7 (D) x 1.6 (H) mm, 0.8g
Tag Type Passive
EPC Number Area 128bit/ unlock (The first 96bit are pre-written by Fujitsu)*1
User Memory None
Reading Range Textile 902-928 MHz 4W eirp: 250 cm (Typical), 2W erp: 220 cm (Typical)
865.6-867.7 MHz 2W erp: 200 cm (Typical)
Rubber Mat 902-928 MHz 4W eirp: 200 cm (Typical)
865.6-867.7 MHz 2W erp: 200 cm (Typical)
Tagging Directly sewing into seam of linen items; sewing with patch/pouch, heat sealing
Estimated Lifetime 200 washing cycles/dry cleaning or 3 years from shipping date, whichever comes first *2
Environmental Resistance Washing Method Laundry, Dry cleaning (Perchloroethylene, Hydrocarbon solvent)*3
Water Extraction Pressure Up to 60 bar
Chemical Resistance Standard Detergent, Softener, Bleach (Oxygen/ Chlorine), Alkali, Acetic/Peracetic Acid
Autoclave Sterilization 121 ºC, 20 minutes, 80 cycles *4
Heat Resistance Drying 85 ºC (Up to 60 min.) or 120 ºC (Up to 10 min.)
Ironing 200 ºC (Up to 10 sec. with press cloth)
Temperature/Humidity Operating -20 to 50 ºC, 10 to 95% RH
Storage -40 to 55 ºC, 8 to 95% RH
All data are results performed in our test condition according to Japan Industrial Standard JIS L 0217 - 102, 301, 401, 402. Your test result may vary. *1: Last 32 bits are not specified. Modifying EPC area is not covered by product warranty *2: Verified with independent testing - nominal industrial laundry conditions *3: Conditions for dry cleaning: Up to 10 minutes/cycle for washing, and 30 minutes/cycle within 60 ºC for drying *4: This test was conducted under Fujitsu Frontech’s laboratory

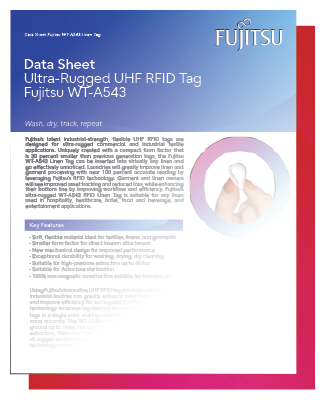

WT-A543 preview

Data Sheet

WT-A543 RFID Linen Tag

Improve asset tracking and reduce loss, while keeping costs low at laundry facilities with Fujitsu’s flexible UHF RFID Linen Tag. Fujitsu’s latest RFID Linen Tag is 30% smaller than previous generation tags, allowing it to be inserted into virtually any linen or garment to help improve workflow and efficiency. Fujitsu’s ultra-rugged WT-A543 RFID Linen Tag is suitable for any linen used in Hospitality, Healthcare, Hotel, Food and Beverage, and Entertainment applications.

WT-A543 preview

Data Sheet

WT-A543 RFID Linen Tag

Improve asset tracking and reduce loss, while keeping costs low at laundry facilities with Fujitsu’s flexible UHF RFID Linen Tag. Fujitsu’s latest RFID Linen Tag is 30% smaller than previous generation tags, allowing it to be inserted into virtually any linen or garment to help improve workflow and efficiency. Fujitsu’s ultra-rugged WT-A543 RFID Linen Tag is suitable for any linen used in Hospitality, Healthcare, Hotel, Food and Beverage, and Entertainment applications.
